Compact Watermakers
PACIFIC
model
Capacity:
Capacity:

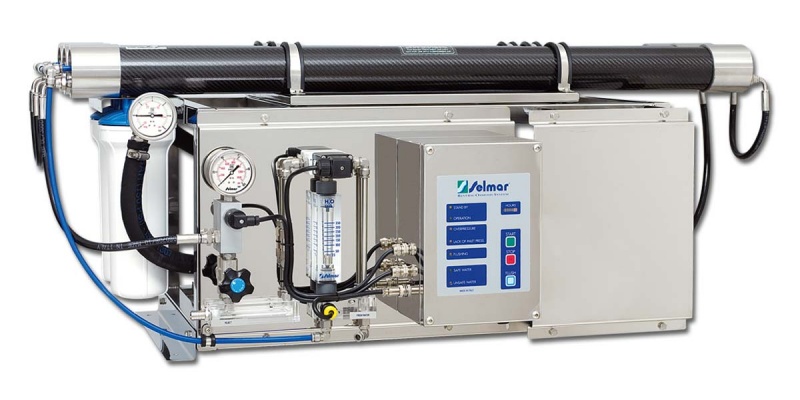

The PACIFIC CS line, built with a compact configuration, is assembled in a solid stainless steel structure that makes the installation easy and guarantees high-reliability and long life.
Application
Application
220 Vac 50 Hz
or 400 Vac 50 Hz three phase
110 litres
230 VAC
170 litres
230 VAC
220 litres
230 VAC
300 litres
Compact Watermakers
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| PACIFIC 90/CS | 110 | 2640 | 697 | 1.8 kW | 90x50x54 cm | 69 kg |
| PACIFIC 150/CS | 170 | 4080 | 1078 | 2.2 kW | 118x50x54 cm | 68 kg |
| PACIFIC 220/CS | 220 | 5280 | 1395 | 2.2 kW | 118x50x54 cm | 75 kg |
| PACIFIC 280/CS | 300 | 7200 | 1902 | 2.2 kW | 118x50x54 cm | 82 kg |
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate
- Hour meter
- Working pressure regulator valve
- Pressure gauges
- Booster pump
- Automatic low pressure shutdown
Optional fittings
- Remote control
- Activated carbon post-filter
- U.V. sterilizer
- Automatic flushing system
- Sand filter
- Oil water separator
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/hour*
- 110
- Maximum capacity in litres/day*
- 2640
- Maximum capacity in gallons/day*
- 697
- Generator
- Yes
- Consumption in kW
- 1.80
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 90 cm
- Height
- 50 cm
- Depth
- 54 cm
- Weight
- 69 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| PACIFIC 90/CS | 110 | 2640 | 697 | 1.8 kW | 90x50x54 cm | 69 kg |
| PACIFIC 150/CS | 170 | 4080 | 1078 | 2.2 kW | 118x50x54 cm | 68 kg |
| PACIFIC 220/CS | 220 | 5280 | 1395 | 2.2 kW | 118x50x54 cm | 75 kg |
| PACIFIC 280/CS | 300 | 7200 | 1902 | 2.2 kW | 118x50x54 cm | 82 kg |
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate
- Hour meter
- Working pressure regulator valve
- Pressure gauges
- Booster pump
- Automatic low pressure shutdown
Optional fittings
- Remote control
- Activated carbon post-filter
- U.V. sterilizer
- Automatic flushing system
- Sand filter
- Oil water separator
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/hour*
- 170
- Maximum capacity in litres/day*
- 4080
- Maximum capacity in gallons/day*
- 1078
- Generator
- Yes
- Consumption in kW
- 2.20
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 118 cm
- Height
- 50 cm
- Depth
- 54 cm
- Weight
- 68 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| PACIFIC 90/CS | 110 | 2640 | 697 | 1.8 kW | 90x50x54 cm | 69 kg |
| PACIFIC 150/CS | 170 | 4080 | 1078 | 2.2 kW | 118x50x54 cm | 68 kg |
| PACIFIC 220/CS | 220 | 5280 | 1395 | 2.2 kW | 118x50x54 cm | 75 kg |
| PACIFIC 280/CS | 300 | 7200 | 1902 | 2.2 kW | 118x50x54 cm | 82 kg |
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate
- Hour meter
- Working pressure regulator valve
- Pressure gauges
- Booster pump
- Automatic low pressure shutdown
Optional fittings
- Remote control
- Activated carbon post-filter
- U.V. sterilizer
- Automatic flushing system
- Sand filter
- Oil water separator
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/hour*
- 220
- Maximum capacity in litres/day*
- 5280
- Maximum capacity in gallons/day*
- 1395
- Generator
- Yes
- Consumption in kW
- 2.20
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 118 cm
- Height
- 50 cm
- Depth
- 54 cm
- Weight
- 75 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| PACIFIC 90/CS | 110 | 2640 | 697 | 1.8 kW | 90x50x54 cm | 69 kg |
| PACIFIC 150/CS | 170 | 4080 | 1078 | 2.2 kW | 118x50x54 cm | 68 kg |
| PACIFIC 220/CS | 220 | 5280 | 1395 | 2.2 kW | 118x50x54 cm | 75 kg |
| PACIFIC 280/CS | 300 | 7200 | 1902 | 2.2 kW | 118x50x54 cm | 82 kg |
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate
- Hour meter
- Working pressure regulator valve
- Pressure gauges
- Booster pump
- Automatic low pressure shutdown
Optional fittings
- Remote control
- Activated carbon post-filter
- U.V. sterilizer
- Automatic flushing system
- Sand filter
- Oil water separator
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/hour*
- 300
- Maximum capacity in litres/day*
- 7200
- Maximum capacity in gallons/day*
- 1902
- Generator
- Yes
- Consumption in kW
- 2.20
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 118 cm
- Height
- 50 cm
- Depth
- 54 cm
- Weight
- 82 kg
