Modular Watermakers
CORAL ECR
model
Capacity:
Capacity:

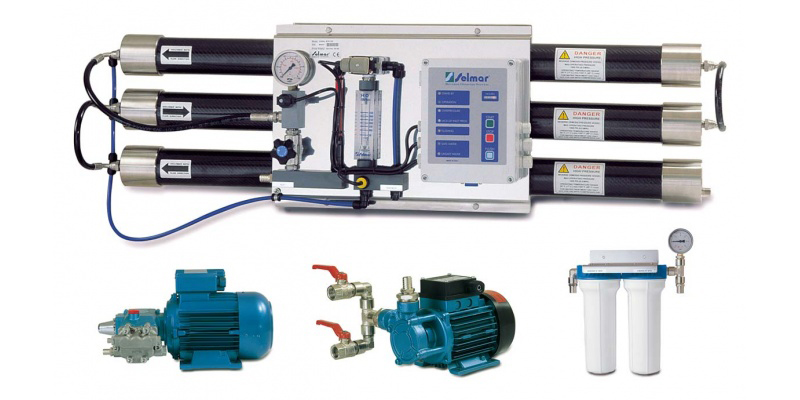

The CORAL ECR line has a modular configuration and it can be used in any application, in which assembly space is limited.
The stainless steel machine is reliable and long-lasting. It is available with a fresh water production capacity starting from 30 litres/hour up to 280 litres/hour and it fully satisfies all needs in pleasure boating and work fields. CORAL ECR requires an on-board generator providing 220/380 Volts and at least 3.5 kVA.
Application
Application
220 Vac 50 Hz
or 400 Vac 50 Hz three phase
30 litres
230 VAC
40 litres
230 VAC
60 litres
230 VAC
70 litres
230 VAC
110 litres
230 VAC
170 litres
230 VAC
220 litres
230 VAC
300 litres
Modular Watermakers
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| CORAL LE/30 | 30 | 720 | 190 | 1.1 kW | 70x35x23 cm | 45 kg |
| CORAL LE/60 | 60 | 1440 | 380 | 1.1 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/30 | 40 | 960 | 254 | 1.8 kW | 70x35x23 cm | 45 kg |
| CORAL ECR/60 | 70 | 1680 | 444 | 1.8 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/90 | 110 | 2640 | 697 | 1.8 kW | 70x35x23 cm | 55 kg |
| CORAL ECR/150 | 170 | 4080 | 1078 | 1.8 kW | 118x35x23 cm | 55 kg |
| CORAL ECR/220 | 220 | 5280 | 1395 | 2.2 kW | 118x35x23 cm | 62 kg |
| CORAL ECR/280 | 300 | 7200 | 1902 | 2.2 kW | 118x35x23 cm | 69 kg |
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 35000 ppm di TDS
Feed water temperature: 25 °C
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow pressure on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Working pressure regulator valve
- Booster pump
- Automatic low pressure shutdown
Optional fittings
- Remote control
- Automatic flushing system
- U.V. sterilizer
- Activated carbon post-filter
- Sand filter
- Oil water separator
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 30
- Maximum capacity in litres/day*
- 720
- Maximum capacity in gallons/day*
- 190
- Generator
- Yes
- Consumption in kW
- 1.10
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 70 cm
- Height
- 35 cm
- Depth
- 23 cm
- Weight
- 45 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| CORAL LE/30 | 30 | 720 | 190 | 1.1 kW | 70x35x23 cm | 45 kg |
| CORAL LE/60 | 60 | 1440 | 380 | 1.1 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/30 | 40 | 960 | 254 | 1.8 kW | 70x35x23 cm | 45 kg |
| CORAL ECR/60 | 70 | 1680 | 444 | 1.8 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/90 | 110 | 2640 | 697 | 1.8 kW | 70x35x23 cm | 55 kg |
| CORAL ECR/150 | 170 | 4080 | 1078 | 1.8 kW | 118x35x23 cm | 55 kg |
| CORAL ECR/220 | 220 | 5280 | 1395 | 2.2 kW | 118x35x23 cm | 62 kg |
| CORAL ECR/280 | 300 | 7200 | 1902 | 2.2 kW | 118x35x23 cm | 69 kg |
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 35000 ppm di TDS
Feed water temperature: 25 °C
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow pressure on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Working pressure regulator valve
- Booster pump
- Automatic low pressure shutdown
Optional fittings
- Remote control
- Automatic flushing system
- U.V. sterilizer
- Activated carbon post-filter
- Sand filter
- Oil water separator
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 40
- Maximum capacity in litres/day*
- 960
- Maximum capacity in gallons/day*
- 254
- Generator
- Yes
- Consumption in kW
- 1.80
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 70 cm
- Height
- 35 cm
- Depth
- 23 cm
- Weight
- 45 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| CORAL LE/30 | 30 | 720 | 190 | 1.1 kW | 70x35x23 cm | 45 kg |
| CORAL LE/60 | 60 | 1440 | 380 | 1.1 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/30 | 40 | 960 | 254 | 1.8 kW | 70x35x23 cm | 45 kg |
| CORAL ECR/60 | 70 | 1680 | 444 | 1.8 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/90 | 110 | 2640 | 697 | 1.8 kW | 70x35x23 cm | 55 kg |
| CORAL ECR/150 | 170 | 4080 | 1078 | 1.8 kW | 118x35x23 cm | 55 kg |
| CORAL ECR/220 | 220 | 5280 | 1395 | 2.2 kW | 118x35x23 cm | 62 kg |
| CORAL ECR/280 | 300 | 7200 | 1902 | 2.2 kW | 118x35x23 cm | 69 kg |
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 35000 ppm di TDS
Feed water temperature: 25 °C
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow pressure on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Working pressure regulator valve
- Booster pump
- Automatic low pressure shutdown
Optional fittings
- Remote control
- Automatic flushing system
- U.V. sterilizer
- Activated carbon post-filter
- Sand filter
- Oil water separator
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 60
- Maximum capacity in litres/day*
- 1440
- Maximum capacity in gallons/day*
- 380
- Electric requirements
- 220 VAC
- Generator
- Yes
- Consumption in kW
- 1.10
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 70 cm
- Height
- 35 cm
- Depth
- 23 cm
- Weight
- 50 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| CORAL LE/30 | 30 | 720 | 190 | 1.1 kW | 70x35x23 cm | 45 kg |
| CORAL LE/60 | 60 | 1440 | 380 | 1.1 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/30 | 40 | 960 | 254 | 1.8 kW | 70x35x23 cm | 45 kg |
| CORAL ECR/60 | 70 | 1680 | 444 | 1.8 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/90 | 110 | 2640 | 697 | 1.8 kW | 70x35x23 cm | 55 kg |
| CORAL ECR/150 | 170 | 4080 | 1078 | 1.8 kW | 118x35x23 cm | 55 kg |
| CORAL ECR/220 | 220 | 5280 | 1395 | 2.2 kW | 118x35x23 cm | 62 kg |
| CORAL ECR/280 | 300 | 7200 | 1902 | 2.2 kW | 118x35x23 cm | 69 kg |
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 35000 ppm di TDS
Feed water temperature: 25 °C
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow pressure on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Working pressure regulator valve
- Booster pump
- Automatic low pressure shutdown
Optional fittings
- Remote control
- Automatic flushing system
- U.V. sterilizer
- Activated carbon post-filter
- Sand filter
- Oil water separator
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 70
- Maximum capacity in litres/day*
- 1680
- Maximum capacity in gallons/day*
- 444
- Generator
- Yes
- Consumption in kW
- 1.80
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 70 cm
- Height
- 35 cm
- Depth
- 23 cm
- Weight
- 50 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| CORAL LE/30 | 30 | 720 | 190 | 1.1 kW | 70x35x23 cm | 45 kg |
| CORAL LE/60 | 60 | 1440 | 380 | 1.1 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/30 | 40 | 960 | 254 | 1.8 kW | 70x35x23 cm | 45 kg |
| CORAL ECR/60 | 70 | 1680 | 444 | 1.8 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/90 | 110 | 2640 | 697 | 1.8 kW | 70x35x23 cm | 55 kg |
| CORAL ECR/150 | 170 | 4080 | 1078 | 1.8 kW | 118x35x23 cm | 55 kg |
| CORAL ECR/220 | 220 | 5280 | 1395 | 2.2 kW | 118x35x23 cm | 62 kg |
| CORAL ECR/280 | 300 | 7200 | 1902 | 2.2 kW | 118x35x23 cm | 69 kg |
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 35000 ppm di TDS
Feed water temperature: 25 °C
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow pressure on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Working pressure regulator valve
- Booster pump
- Automatic low pressure shutdown
Optional fittings
- Remote control
- Automatic flushing system
- U.V. sterilizer
- Activated carbon post-filter
- Sand filter
- Oil water separator
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 110
- Maximum capacity in litres/day*
- 2640
- Maximum capacity in gallons/day*
- 697
- Generator
- Yes
- Consumption in kW
- 1.80
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 70 cm
- Height
- 35 cm
- Depth
- 23 cm
- Weight
- 55 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| CORAL LE/30 | 30 | 720 | 190 | 1.1 kW | 70x35x23 cm | 45 kg |
| CORAL LE/60 | 60 | 1440 | 380 | 1.1 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/30 | 40 | 960 | 254 | 1.8 kW | 70x35x23 cm | 45 kg |
| CORAL ECR/60 | 70 | 1680 | 444 | 1.8 kW | 70x35x23 cm | 50 kg |
| CORAL ECR/90 | 110 | 2640 | 697 | 1.8 kW | 70x35x23 cm | 55 kg |
| CORAL ECR/150 | 170 | 4080 | 1078 | 1.8 kW | 118x35x23 cm | 55 kg |
| CORAL ECR/220 | 220 | 5280 | 1395 | 2.2 kW | 118x35x23 cm | 62 kg |
| CORAL ECR/280 | 300 | 7200 | 1902 | 2.2 kW | 118x35x23 cm | 69 kg |
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 35000 ppm di TDS
Feed water temperature: 25 °C
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow pressure on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Working pressure regulator valve
- Booster pump
- Automatic low pressure shutdown
Optional fittings
- Remote control
- Automatic flushing system
- U.V. sterilizer
- Activated carbon post-filter
- Sand filter
- Oil water separator
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
