Nautical and Marine
Sewage? The solution
The discharge of raw sewage into the sea can create a health hazard. Sewage can also lead to oxygen depletion and can be an obvious visual pollution in coastal areas – a major problem for countries with tourist industries.
The main sources of human-produced sewage are land-based – such as municipal sewers or treatment plants. However, the discharge of sewage into the sea from ships also contributes to marine pollution.
Therefore, the regulations in Annex IV of MARPOL prohibit the discharge of sewage into the sea within a specified distance of the nearest land, unless the ships have in operation an approved sewage treatment system.
Our Sewage treatment system are designed for the treatment and removal of bacterial pollution through an oxide/reduction process and to drastically reduce TSS, BOD5, COD, turbidity and the organic and physical pollutants in waste water produced on boat thanks to a fine purification system.
The treated wastewater produced by the plant, comply with the international resolution of “Marpol” environmental rules, which regulates the discharge of treated wastewater into the sea. A concrete solution to eliminate the need for large holding tanks and the use of shore pump-out stations. Blue Sea by Selmar is certified according to the latest IMO MARPOL Res. MEPC. 227 (64). It’s also in compliance with MED 2014/90/EU.
Below all certificates:
– No. 21-2163091-1-EC “modulo B” ABS
– No. 21-2205204-1-MED “modulo D” ABS
– No. 20-2042150-PDA ABS
– ML 24PTB00001 CCS
– ML 19PTB00008_02 CCS
Sewage Treatment Systems
Sewage
model
Capacity:
Capacity:
The BLUE SEA PLUS system is a new-generation waste water purifier capable of treating from 2500 to 22000 liters a day. It is based on the principle of “chemical oxidation”. Beside the advanced oxidation-reduction process there are other stage and units which complete the plant as: sterilization units (primary and secondary UV sterilization), oxygenation unit, flotation and cleaning unit. Thanks to this completely automatic, technologically advanced system, equipped with a special chemical/physical laboratory, the waste water is purified, triturated, sterilized, all in accordance to the enforced norms regarding the discharge of waste water into the sea. It’s easy to install and to use, and it needs a limited maintenance.
Application
Application
230 Vac 50 Hz
or 400 Vac 50 Hz three phase
2500 litres
230/400 VAC
3500 litres
230/400 VAC
4000 litres
230/400 VAC
7000 litres
230/400 VAC
12000 litres
230/400 VAC
22000 litres
Models and characteristics
Hydraulics: system characteristics
Standard features
Accessories and extras
Models and characteristics
| Model | Litres/day | Litres of waste water treated per cycle | Time to the process | Nominal AC power consumption | Dimensions (LxHxD) mm | Weight |
|---|---|---|---|---|---|---|
| BLUE SEA 2500 | 2500 | 28 | 15 min. | 1,2 kW | 620 x 730 x 780 | 80 kg |
| BLUE SEA 3500 | 3500 | 41 | 16 min. | 1,5 kW | 620 x 930 x 740 | 106 kg |
| BLUE SEA 4000 | 4000 | 49 | 16 min. | 1,5 kW | 620 x 1130 x 740 | 121 kg |
| BLUE SEA 7000 | 7000 | 98 | 18 min. | 1,5 kW | 670 x 900 x 1025 | 134 kg |
| BLUE SEA 12000 | 12000 | 167 | 20 min. | 1,5 kW | 990 x 900 x 900 | 138 kg |
| BLUE SEA 22000 | 22000 | 450 | 29 min. | 1,5 kW | 980x1750x1250 | 205 kg |
Electric requirements: 230VAC ±5% 50Hz ±5% 1ph / 400VAC ±5% 50Hz ±5% 3ph – other voltages available on request.
12 – 24 VDC on request. (Other voltages and frequencies are available on demand)
All sewage treatment systems BlueSea are certified by DNV-GL according to New Res. IMO MARPOL Mepc. 227(64) and European Directive 2014/90/EU (MED).
Hydraulics: system characteristics
| Input/output terminals for models 2500, 3500, 4000, 7000 and 12000: | |
|---|---|
| Influent: black and grey water | 1.1/4″ |
| Sea water inlet | 1.1/4″ |
| Discharge Effluent | 1.1/2″ |
| Overflow | 1.1/4″ |
| Air Vent | 1.1/4″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
| Input/output terminals for model 22000: | |
| Influent: black and grey water | 1.1/2″ |
| Sea water inlet | 1.1/2″ |
| Discharge Effluent | 2″ |
| Overflow | 1.1/2″ |
| Air Vent | 1.1/2″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
All sewage treatment systems Blue Sea are certified:
- type approval ABS (AMERICAN BUREAU OF SHIPPING)
- Type approval CCS (CHINA CLASSIFICATION SOCIETY)
in accordance with the new IMO MARPOL Mepc Resolution. 227 (64) and the new European Directive 2014/90/EU (MED).
Standard features
- Pre fuel pump
- Seawater pump
- U.V. sterilizer for post secondary treatment
- Automatic cleaning system
- Liquid oxidant tank
- Electronic over flow
- Mechanical over flow
- Hour meter
- Primary “U.V. STERILIZER” with control box
- Air blower
- Cycle counter
- Mechanical sensor of minimum level for onboard sewage tank, with installation kit
- Control panel with TFT color touch screen
Accessories and extras
- Air filter (activated carbon)
- Remote control with LCD display
- Grease traps:
- Mod. SEL 075/T
- Mod. SEL 125/T
- Mod. SEL 175/T
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/day*
- 2500
- Disposal cycle duration
- 15 min
- Litres of waste water treated per cycle
- 26
- Generator
- Yes
- Consumption in kW
- 1.20
Product dimensions
- Width
- 62 cm
- Height
- 73 cm
- Depth
- 71.5 cm
- Weight
- 80 kg

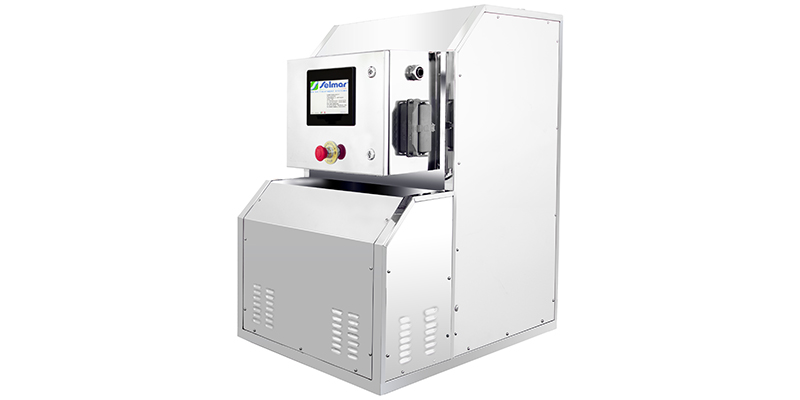

Blue Sea
Standard equipment

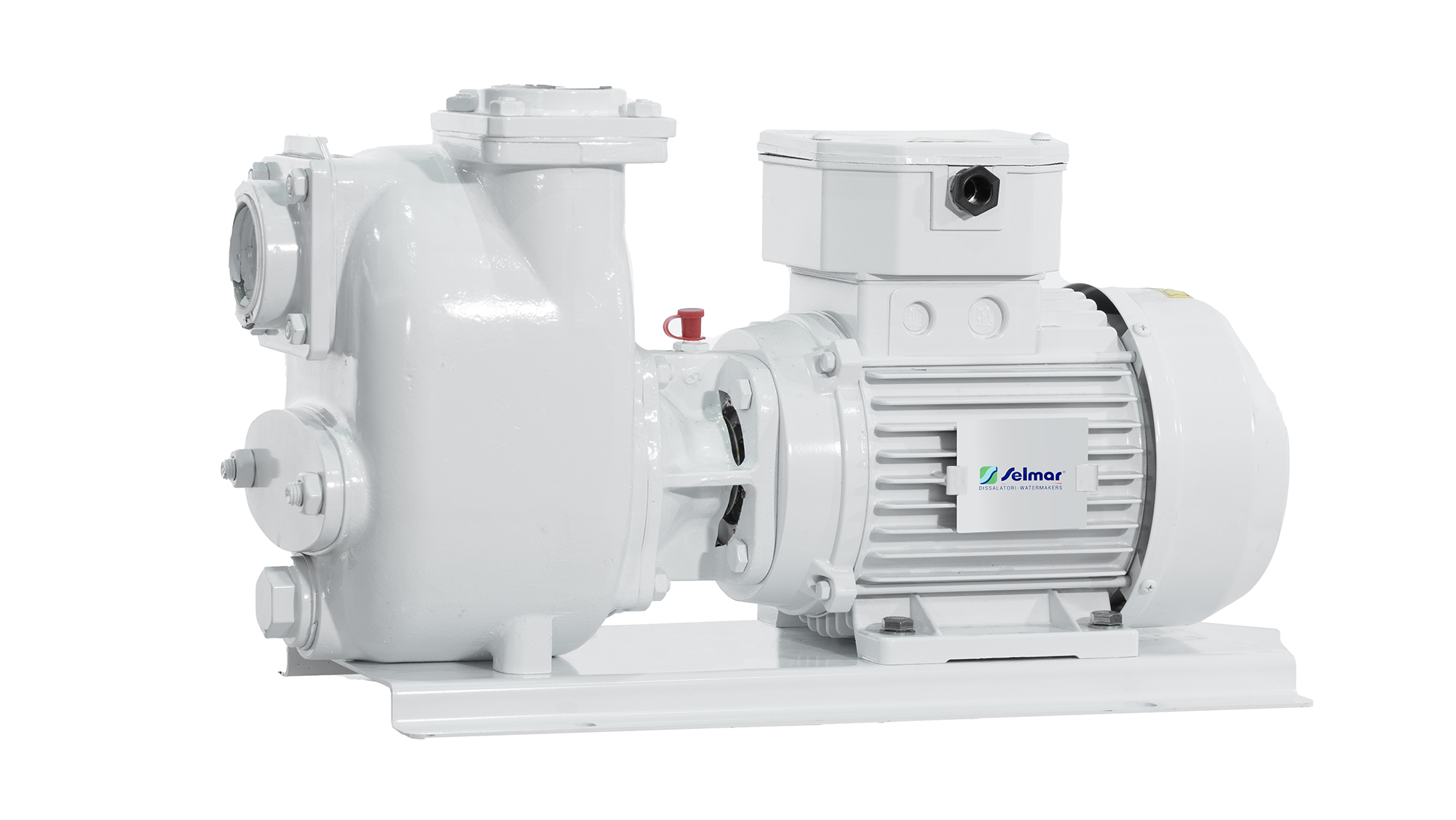

Macerator booster pump
433 x 172 x 250 (mm) - 19kg Macerator booster pump Mac-One 467 x 265 x 250 (mm) - 30kg

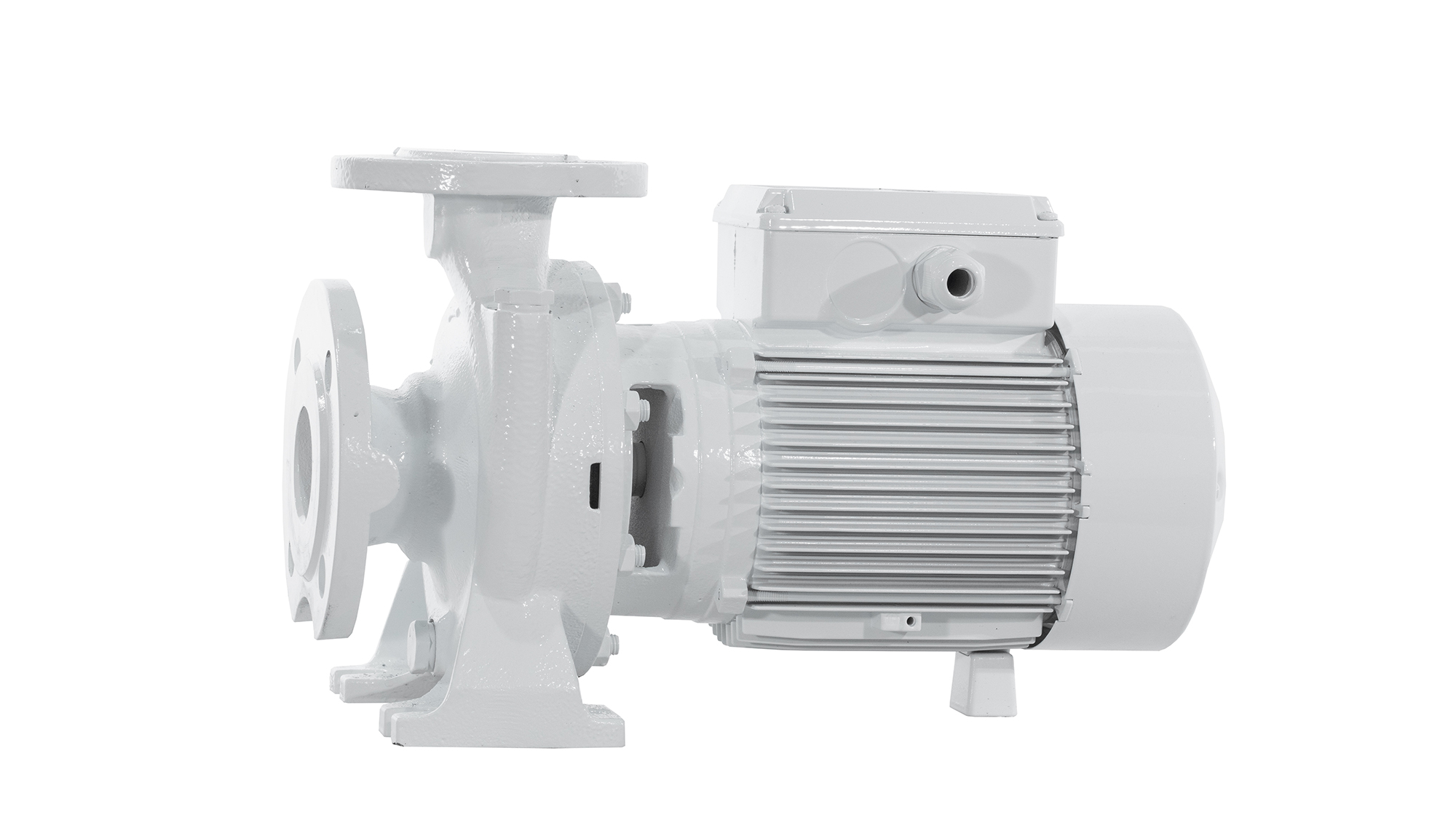

Sea Water pump
405 x247 x 185 (mm) - 30kg

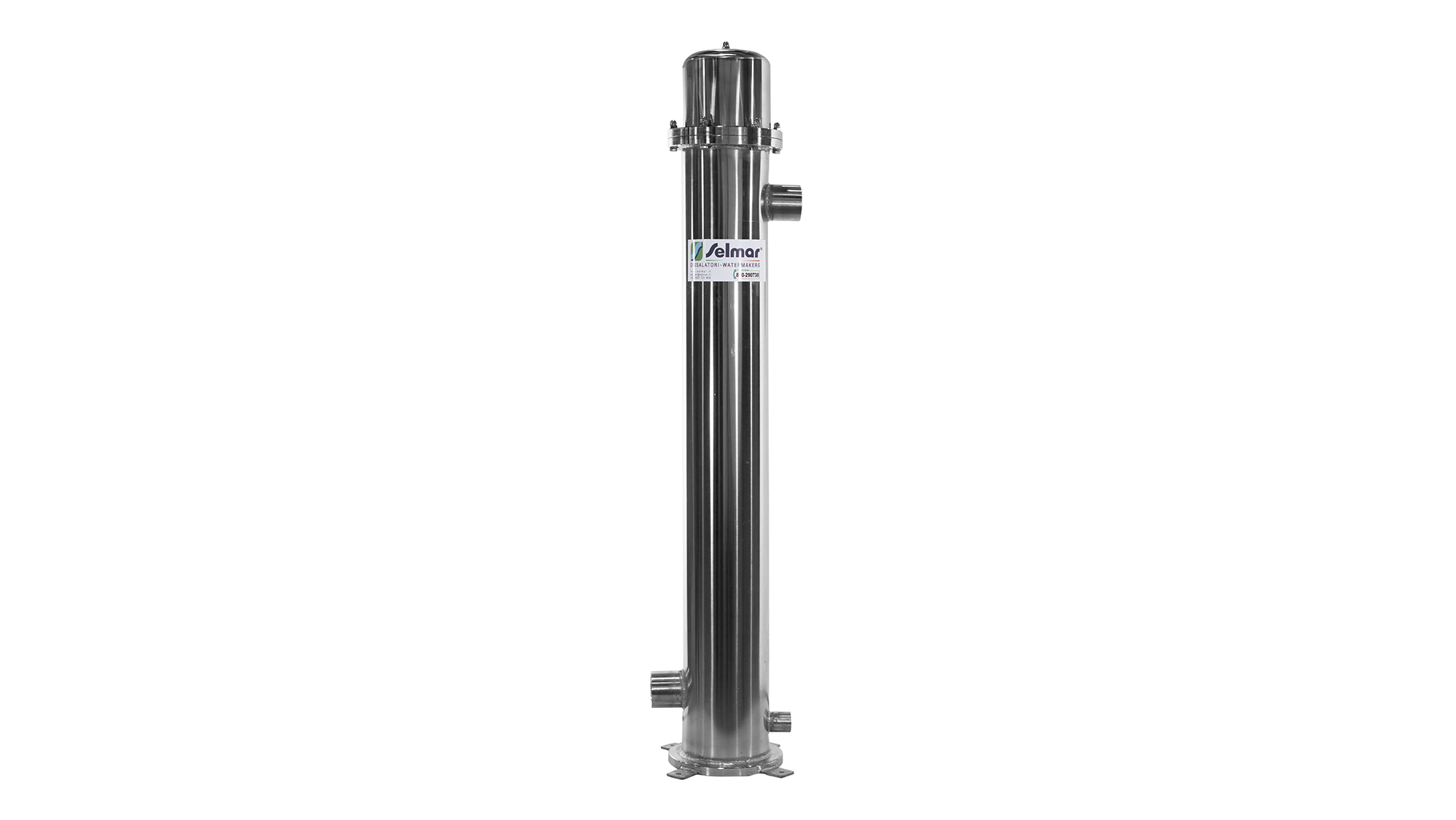

Primary "U.V. sterilizer"
168 x 940 x 150 (mm) - 11kg

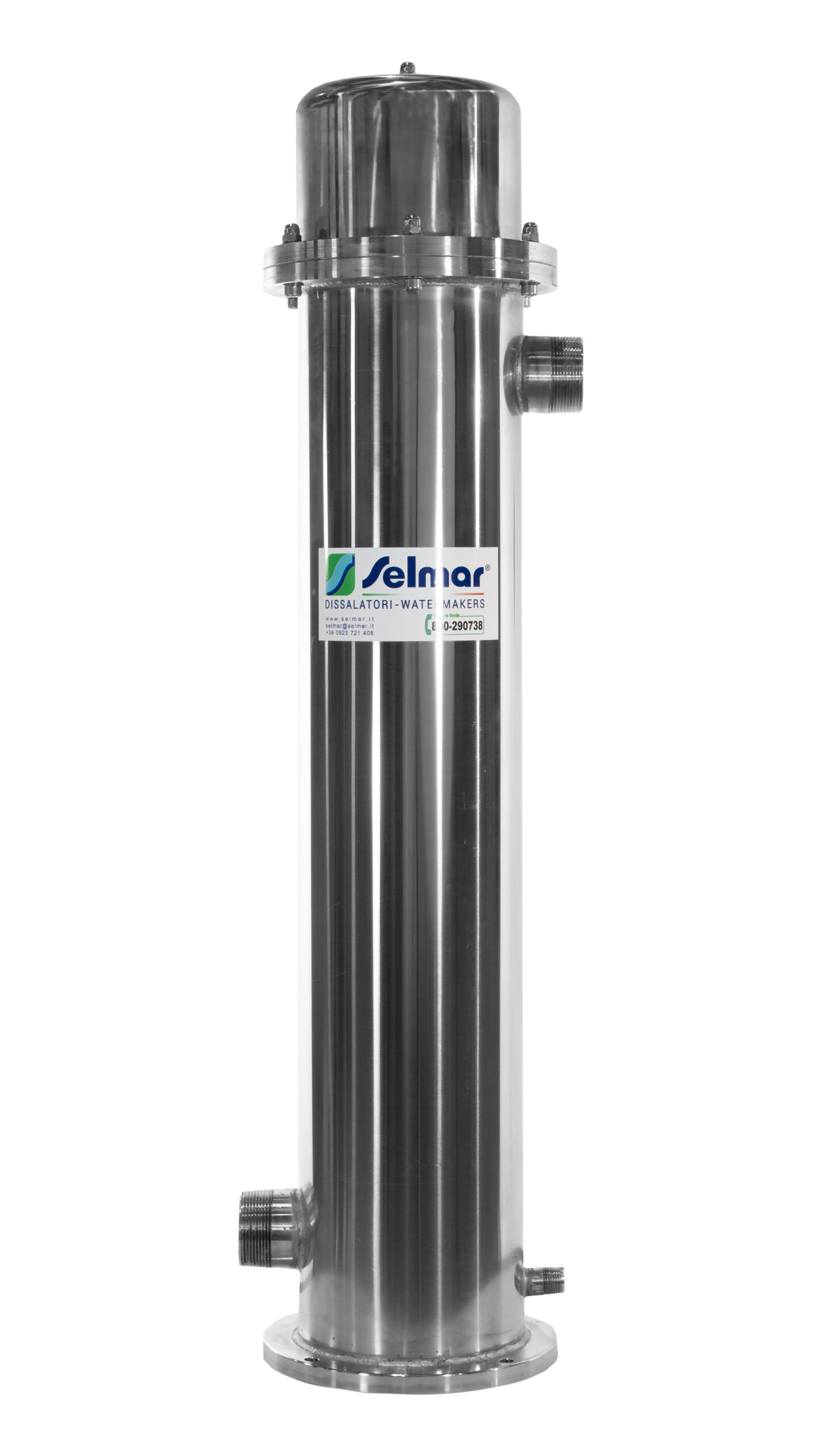

Secondary "U.V. sterilizer"
250 x 965 x 220 (mm) - 23.5kg

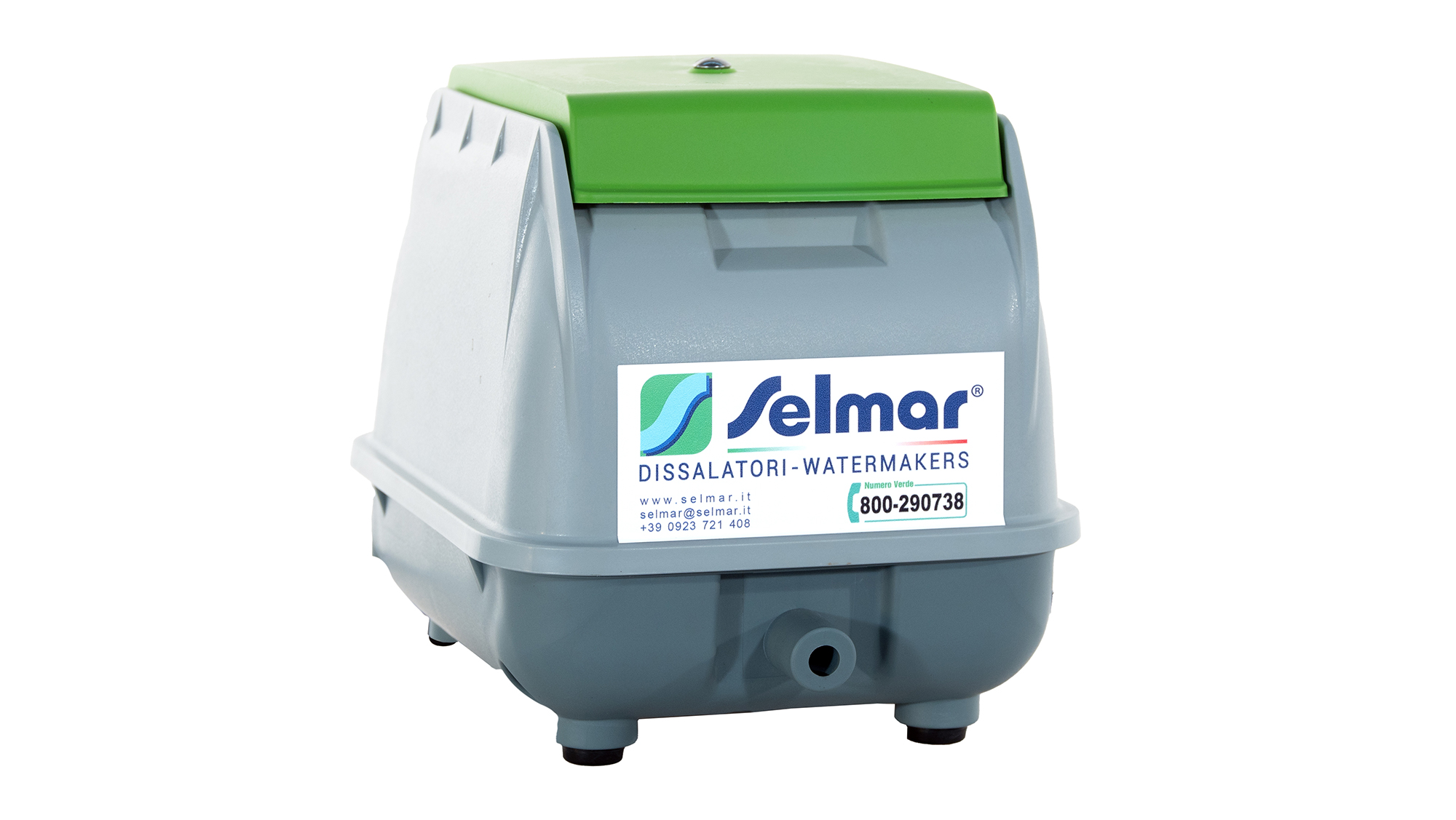

Air blower
254 x 176 x 177 (mm) - 8,5kg

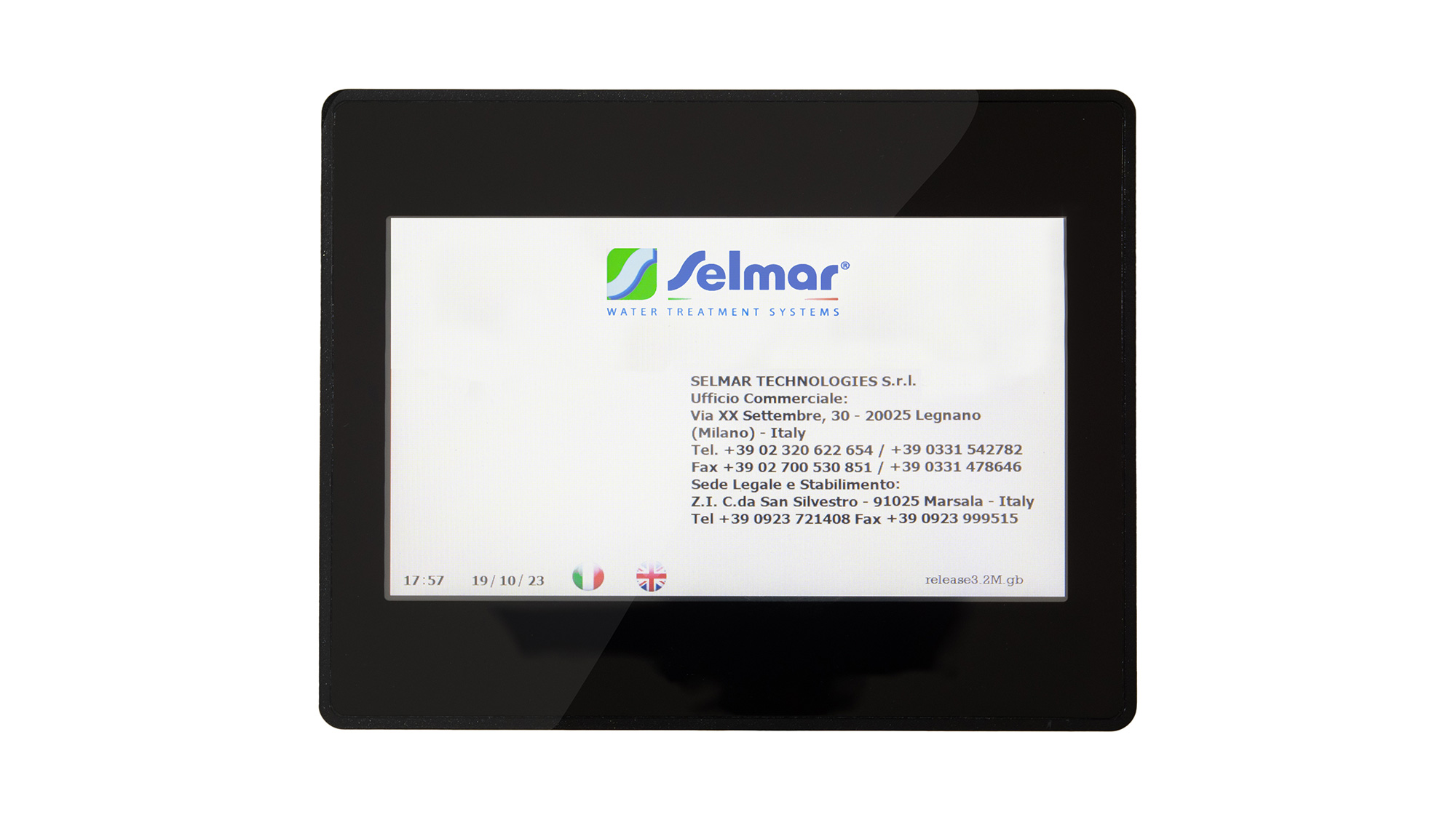

Touch screen
| TECHNICAL SPECIFICATIONS | Macerator Pump | Sea Water Pump | Blower | Primary UV Sterilizer | Secondary UV Sterilizer | UV Electrical Panel | Level sensor for mixing tank | Chemical tank (Hydrogen Peroxide) |
|---|---|---|---|---|---|---|---|---|
| Dimensions (L x H x D) [mm] | (465 x 265 x 210) | (405 x 245 x 185) | (255 x 175 x 178) | (175 x 945 x 150) | (250 x 965 x 220) | (465 x 385 x 125) | (1025,5 x 56) | (240 x 465 x 365) |
| Weight [kg] | 30,0 | 29,0 | 4,4 | 9,5 | 23,5 | 10,8 | 0,3 | 1,6 |
Models and characteristics
Hydraulics: system characteristics
Standard features
Accessories and extras
Models and characteristics
| Model | Litres/day | Litres of waste water treated per cycle | Time to the process | Nominal AC power consumption | Dimensions (LxHxD) mm | Weight |
|---|---|---|---|---|---|---|
| BLUE SEA 2500 | 2500 | 28 | 15 min. | 1,2 kW | 620 x 730 x 780 | 80 kg |
| BLUE SEA 3500 | 3500 | 41 | 16 min. | 1,5 kW | 620 x 930 x 740 | 106 kg |
| BLUE SEA 4000 | 4000 | 49 | 16 min. | 1,5 kW | 620 x 1130 x 740 | 121 kg |
| BLUE SEA 7000 | 7000 | 98 | 18 min. | 1,5 kW | 670 x 900 x 1025 | 134 kg |
| BLUE SEA 12000 | 12000 | 167 | 20 min. | 1,5 kW | 990 x 900 x 900 | 138 kg |
| BLUE SEA 22000 | 22000 | 450 | 29 min. | 1,5 kW | 980x1750x1250 | 205 kg |
Electric requirements: 230VAC ±5% 50Hz ±5% 1ph / 400VAC ±5% 50Hz ±5% 3ph – other voltages available on request.
12 – 24 VDC on request. (Other voltages and frequencies are available on demand)
All sewage treatment systems BlueSea are certified by DNV-GL according to New Res. IMO MARPOL Mepc. 227(64) and European Directive 2014/90/EU (MED).
Hydraulics: system characteristics
| Input/output terminals for models 2500, 3500, 4000, 7000 and 12000: | |
|---|---|
| Influent: black and grey water | 1.1/4″ |
| Sea water inlet | 1.1/4″ |
| Discharge Effluent | 1.1/2″ |
| Overflow | 1.1/4″ |
| Air Vent | 1.1/4″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
| Input/output terminals for model 22000: | |
| Influent: black and grey water | 1.1/2″ |
| Sea water inlet | 1.1/2″ |
| Discharge Effluent | 2″ |
| Overflow | 1.1/2″ |
| Air Vent | 1.1/2″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
All sewage treatment systems Blue Sea are certified:
- type approval ABS (AMERICAN BUREAU OF SHIPPING)
- Type approval CCS (CHINA CLASSIFICATION SOCIETY)
in accordance with the new IMO MARPOL Mepc Resolution. 227 (64) and the new European Directive 2014/90/EU (MED).
Standard features
- Pre fuel pump
- Seawater pump
- U.V. sterilizer for post secondary treatment
- Automatic cleaning system
- Liquid oxidant tank
- Electronic over flow
- Mechanical over flow
- Hour meter
- Primary “U.V. STERILIZER” with control box
- Air blower
- Cycle counter
- Mechanical sensor of minimum level for onboard sewage tank, with installation kit
- Control panel with TFT color touch screen
Accessories and extras
- Air filter (activated carbon)
- Remote control with LCD display
- Grease traps:
- Mod. SEL 075/T
- Mod. SEL 125/T
- Mod. SEL 175/T
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/day*
- 3500
- Disposal cycle duration
- 15 min
- Litres of waste water treated per cycle
- 38
- Generator
- Yes
- Consumption in kW
- 1.50
Product dimensions
- Width
- 62 cm
- Height
- 93 cm
- Depth
- 74 cm
- Weight
- 128 kg
Models and characteristics
Hydraulics: system characteristics
Standard features
Accessories and extras
Models and characteristics
| Model | Litres/day | Litres of waste water treated per cycle | Time to the process | Nominal AC power consumption | Dimensions (LxHxD) mm | Weight |
|---|---|---|---|---|---|---|
| BLUE SEA 2500 | 2500 | 28 | 15 min. | 1,2 kW | 620 x 730 x 780 | 80 kg |
| BLUE SEA 3500 | 3500 | 41 | 16 min. | 1,5 kW | 620 x 930 x 740 | 106 kg |
| BLUE SEA 4000 | 4000 | 49 | 16 min. | 1,5 kW | 620 x 1130 x 740 | 121 kg |
| BLUE SEA 7000 | 7000 | 98 | 18 min. | 1,5 kW | 670 x 900 x 1025 | 134 kg |
| BLUE SEA 12000 | 12000 | 167 | 20 min. | 1,5 kW | 990 x 900 x 900 | 138 kg |
| BLUE SEA 22000 | 22000 | 450 | 29 min. | 1,5 kW | 980x1750x1250 | 205 kg |
Electric requirements: 230VAC ±5% 50Hz ±5% 1ph / 400VAC ±5% 50Hz ±5% 3ph – other voltages available on request.
12 – 24 VDC on request. (Other voltages and frequencies are available on demand)
All sewage treatment systems BlueSea are certified by DNV-GL according to New Res. IMO MARPOL Mepc. 227(64) and European Directive 2014/90/EU (MED).
Hydraulics: system characteristics
| Input/output terminals for models 2500, 3500, 4000, 7000 and 12000: | |
|---|---|
| Influent: black and grey water | 1.1/4″ |
| Sea water inlet | 1.1/4″ |
| Discharge Effluent | 1.1/2″ |
| Overflow | 1.1/4″ |
| Air Vent | 1.1/4″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
| Input/output terminals for model 22000: | |
| Influent: black and grey water | 1.1/2″ |
| Sea water inlet | 1.1/2″ |
| Discharge Effluent | 2″ |
| Overflow | 1.1/2″ |
| Air Vent | 1.1/2″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
All sewage treatment systems Blue Sea are certified:
- type approval ABS (AMERICAN BUREAU OF SHIPPING)
- Type approval CCS (CHINA CLASSIFICATION SOCIETY)
in accordance with the new IMO MARPOL Mepc Resolution. 227 (64) and the new European Directive 2014/90/EU (MED).
Standard features
- Pre fuel pump
- Seawater pump
- U.V. sterilizer for post secondary treatment
- Automatic cleaning system
- Liquid oxidant tank
- Electronic over flow
- Mechanical over flow
- Hour meter
- Primary “U.V. STERILIZER” with control box
- Air blower
- Cycle counter
- Mechanical sensor of minimum level for onboard sewage tank, with installation kit
- Control panel with TFT color touch screen
Accessories and extras
- Air filter (activated carbon)
- Remote control with LCD display
- Grease traps:
- Mod. SEL 075/T
- Mod. SEL 125/T
- Mod. SEL 175/T
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/day*
- 4000
- Disposal cycle duration
- 16 min
- Litres of waste water treated per cycle
- 45
- Generator
- Yes
- Consumption in kW
- 1.50
Product dimensions
- Width
- 62 cm
- Height
- 113 cm
- Depth
- 74 cm
- Weight
- 115 kg
Models and characteristics
Hydraulics: system characteristics
Standard features
Accessories and extras
Models and characteristics
| Model | Litres/day | Litres of waste water treated per cycle | Time to the process | Nominal AC power consumption | Dimensions (LxHxD) mm | Weight |
|---|---|---|---|---|---|---|
| BLUE SEA 2500 | 2500 | 28 | 15 min. | 1,2 kW | 620 x 730 x 780 | 80 kg |
| BLUE SEA 3500 | 3500 | 41 | 16 min. | 1,5 kW | 620 x 930 x 740 | 106 kg |
| BLUE SEA 4000 | 4000 | 49 | 16 min. | 1,5 kW | 620 x 1130 x 740 | 121 kg |
| BLUE SEA 7000 | 7000 | 98 | 18 min. | 1,5 kW | 670 x 900 x 1025 | 134 kg |
| BLUE SEA 12000 | 12000 | 167 | 20 min. | 1,5 kW | 990 x 900 x 900 | 138 kg |
| BLUE SEA 22000 | 22000 | 450 | 29 min. | 1,5 kW | 980x1750x1250 | 205 kg |
Electric requirements: 230VAC ±5% 50Hz ±5% 1ph / 400VAC ±5% 50Hz ±5% 3ph – other voltages available on request.
12 – 24 VDC on request. (Other voltages and frequencies are available on demand)
All sewage treatment systems BlueSea are certified by DNV-GL according to New Res. IMO MARPOL Mepc. 227(64) and European Directive 2014/90/EU (MED).
Hydraulics: system characteristics
| Input/output terminals for models 2500, 3500, 4000, 7000 and 12000: | |
|---|---|
| Influent: black and grey water | 1.1/4″ |
| Sea water inlet | 1.1/4″ |
| Discharge Effluent | 1.1/2″ |
| Overflow | 1.1/4″ |
| Air Vent | 1.1/4″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
| Input/output terminals for model 22000: | |
| Influent: black and grey water | 1.1/2″ |
| Sea water inlet | 1.1/2″ |
| Discharge Effluent | 2″ |
| Overflow | 1.1/2″ |
| Air Vent | 1.1/2″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
All sewage treatment systems Blue Sea are certified:
- type approval ABS (AMERICAN BUREAU OF SHIPPING)
- Type approval CCS (CHINA CLASSIFICATION SOCIETY)
in accordance with the new IMO MARPOL Mepc Resolution. 227 (64) and the new European Directive 2014/90/EU (MED).
Standard features
- Pre fuel pump
- Seawater pump
- U.V. sterilizer for post secondary treatment
- Automatic cleaning system
- Liquid oxidant tank
- Electronic over flow
- Mechanical over flow
- Hour meter
- Primary “U.V. STERILIZER” with control box
- Air blower
- Cycle counter
- Mechanical sensor of minimum level for onboard sewage tank, with installation kit
- Control panel with TFT color touch screen
Accessories and extras
- Air filter (activated carbon)
- Remote control with LCD display
- Grease traps:
- Mod. SEL 075/T
- Mod. SEL 125/T
- Mod. SEL 175/T
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/day*
- 7000
- Disposal cycle duration
- 20 min
- Litres of waste water treated per cycle
- 95
- Generator
- Yes
- Consumption in kW
- 1.50
Product dimensions
- Width
- 67 cm
- Height
- 90 cm
- Depth
- 102.5 cm
- Weight
- 128 kg
Models and characteristics
Hydraulics: system characteristics
Standard features
Accessories and extras
Models and characteristics
| Model | Litres/day | Litres of waste water treated per cycle | Time to the process | Nominal AC power consumption | Dimensions (LxHxD) mm | Weight |
|---|---|---|---|---|---|---|
| BLUE SEA 2500 | 2500 | 28 | 15 min. | 1,2 kW | 620 x 730 x 780 | 80 kg |
| BLUE SEA 3500 | 3500 | 41 | 16 min. | 1,5 kW | 620 x 930 x 740 | 106 kg |
| BLUE SEA 4000 | 4000 | 49 | 16 min. | 1,5 kW | 620 x 1130 x 740 | 121 kg |
| BLUE SEA 7000 | 7000 | 98 | 18 min. | 1,5 kW | 670 x 900 x 1025 | 134 kg |
| BLUE SEA 12000 | 12000 | 167 | 20 min. | 1,5 kW | 990 x 900 x 900 | 138 kg |
| BLUE SEA 22000 | 22000 | 450 | 29 min. | 1,5 kW | 980x1750x1250 | 205 kg |
Electric requirements: 230VAC ±5% 50Hz ±5% 1ph / 400VAC ±5% 50Hz ±5% 3ph – other voltages available on request.
12 – 24 VDC on request. (Other voltages and frequencies are available on demand)
All sewage treatment systems BlueSea are certified by DNV-GL according to New Res. IMO MARPOL Mepc. 227(64) and European Directive 2014/90/EU (MED).
Hydraulics: system characteristics
| Input/output terminals for models 2500, 3500, 4000, 7000 and 12000: | |
|---|---|
| Influent: black and grey water | 1.1/4″ |
| Sea water inlet | 1.1/4″ |
| Discharge Effluent | 1.1/2″ |
| Overflow | 1.1/4″ |
| Air Vent | 1.1/4″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
| Input/output terminals for model 22000: | |
| Influent: black and grey water | 1.1/2″ |
| Sea water inlet | 1.1/2″ |
| Discharge Effluent | 2″ |
| Overflow | 1.1/2″ |
| Air Vent | 1.1/2″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
All sewage treatment systems Blue Sea are certified:
- type approval ABS (AMERICAN BUREAU OF SHIPPING)
- Type approval CCS (CHINA CLASSIFICATION SOCIETY)
in accordance with the new IMO MARPOL Mepc Resolution. 227 (64) and the new European Directive 2014/90/EU (MED).
Standard features
- Pre fuel pump
- Seawater pump
- U.V. sterilizer for post secondary treatment
- Automatic cleaning system
- Liquid oxidant tank
- Electronic over flow
- Mechanical over flow
- Hour meter
- Primary “U.V. STERILIZER” with control box
- Air blower
- Cycle counter
- Mechanical sensor of minimum level for onboard sewage tank, with installation kit
- Control panel with TFT color touch screen
Accessories and extras
- Air filter (activated carbon)
- Remote control with LCD display
- Grease traps:
- Mod. SEL 075/T
- Mod. SEL 125/T
- Mod. SEL 175/T
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/day*
- 12000
- Disposal cycle duration
- 18 min
- Litres of waste water treated per cycle
- 138
- Generator
- Yes
- Consumption in kW
- 1.50
Product dimensions
- Width
- 99 cm
- Height
- 90 cm
- Depth
- 90 cm
- Weight
- 132 kg
Models and characteristics
Hydraulics: system characteristics
Standard features
Accessories and extras
Models and characteristics
| Model | Litres/day | Litres of waste water treated per cycle | Time to the process | Nominal AC power consumption | Dimensions (LxHxD) mm | Weight |
|---|---|---|---|---|---|---|
| BLUE SEA 2500 | 2500 | 28 | 15 min. | 1,2 kW | 620 x 730 x 780 | 80 kg |
| BLUE SEA 3500 | 3500 | 41 | 16 min. | 1,5 kW | 620 x 930 x 740 | 106 kg |
| BLUE SEA 4000 | 4000 | 49 | 16 min. | 1,5 kW | 620 x 1130 x 740 | 121 kg |
| BLUE SEA 7000 | 7000 | 98 | 18 min. | 1,5 kW | 670 x 900 x 1025 | 134 kg |
| BLUE SEA 12000 | 12000 | 167 | 20 min. | 1,5 kW | 990 x 900 x 900 | 138 kg |
| BLUE SEA 22000 | 22000 | 450 | 29 min. | 1,5 kW | 980x1750x1250 | 205 kg |
Electric requirements: 230VAC ±5% 50Hz ±5% 1ph / 400VAC ±5% 50Hz ±5% 3ph – other voltages available on request.
12 – 24 VDC on request. (Other voltages and frequencies are available on demand)
All sewage treatment systems BlueSea are certified by DNV-GL according to New Res. IMO MARPOL Mepc. 227(64) and European Directive 2014/90/EU (MED).
Hydraulics: system characteristics
| Input/output terminals for models 2500, 3500, 4000, 7000 and 12000: | |
|---|---|
| Influent: black and grey water | 1.1/4″ |
| Sea water inlet | 1.1/4″ |
| Discharge Effluent | 1.1/2″ |
| Overflow | 1.1/4″ |
| Air Vent | 1.1/4″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
| Input/output terminals for model 22000: | |
| Influent: black and grey water | 1.1/2″ |
| Sea water inlet | 1.1/2″ |
| Discharge Effluent | 2″ |
| Overflow | 1.1/2″ |
| Air Vent | 1.1/2″ |
| Air inlet | 3/4″ |
| In/out primary U.V. | 1.1/4″ |
All sewage treatment systems Blue Sea are certified:
- type approval ABS (AMERICAN BUREAU OF SHIPPING)
- Type approval CCS (CHINA CLASSIFICATION SOCIETY)
in accordance with the new IMO MARPOL Mepc Resolution. 227 (64) and the new European Directive 2014/90/EU (MED).
Standard features
- Pre fuel pump
- Seawater pump
- U.V. sterilizer for post secondary treatment
- Automatic cleaning system
- Liquid oxidant tank
- Electronic over flow
- Mechanical over flow
- Hour meter
- Primary “U.V. STERILIZER” with control box
- Air blower
- Cycle counter
- Mechanical sensor of minimum level for onboard sewage tank, with installation kit
- Control panel with TFT color touch screen
Accessories and extras
- Air filter (activated carbon)
- Remote control with LCD display
- Grease traps:
- Mod. SEL 075/T
- Mod. SEL 125/T
- Mod. SEL 175/T
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/day*
- 22000
- Disposal cycle duration
- 25 min
- Litres of waste water treated per cycle
- 400
- Generator
- Yes
- Consumption in kW
- 1.50
Product dimensions
- Width
- 98 cm
- Height
- 175 cm
- Depth
- 125 cm
- Weight
- 205 kg
