Modular Watermakers
BASIC
model
Capacity:
Capacity:

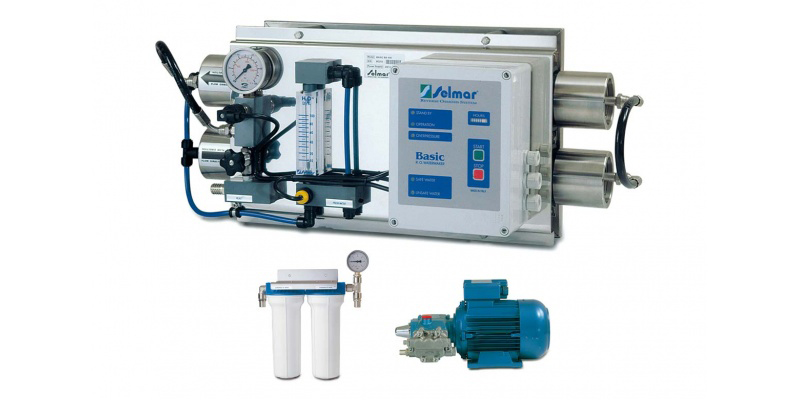

The BASIC line is a modular watermaker with limited dimensions. It is economical and characterized by a low energy consumption.
It is available in two models with a fresh water production capability of 30 litres/hour and 60 litres/hour. The structure is made of stainless steel and installation is very easy.
Application
Application
220 Vac 50 Hz
or 400 Vac 50 Hz three phase
30 litres
230 VAC
60 litres
Modular Watermakers
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| BASIC BA/200 | 30 | 720 | 190 | 0.75 kW | 70x30x23 cm | 32 kg |
| BASIC BA/400 | 60 | 1440 | 380 | 0.75 kW | 70x30x23 cm | 37 kg |
Standard equipment
- Automatic over pressure shutdown
- Flow meter on permeate
- Hour meter
- Operating pressure regulator valve
- Pressure gauges
Optional fittings
- Remote control
- Salinity mater with automatic flow diversion valve
- Activated carbon post-filter
- U.V. sterilizer
- Oil water separator
- Booster pump
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
**Â The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 30
- Maximum capacity in litres/day*
- 720
- Maximum capacity in gallons/day*
- 190
- Generator
- Yes
- Consumption in kW
- 0.75
- Consumption in Ampere (12 VDC)
- 0.00
- Consumption in Ampere (24 VDC)
- 0.00
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 70 cm
- Height
- 30 cm
- Depth
- 23 cm
- Weight
- 32 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| BASIC BA/200 | 30 | 720 | 190 | 0.75 kW | 70x30x23 cm | 32 kg |
| BASIC BA/400 | 60 | 1440 | 380 | 0.75 kW | 70x30x23 cm | 37 kg |
Standard equipment
- Automatic over pressure shutdown
- Flow meter on permeate
- Hour meter
- Operating pressure regulator valve
- Pressure gauges
Optional fittings
- Remote control
- Salinity mater with automatic flow diversion valve
- Activated carbon post-filter
- U.V. sterilizer
- Oil water separator
- Booster pump
Electric requirements: 220 Vac ± 10% 50Hz ± 5%
Other voltages and frequencies are available on demand
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
**Â The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 60
- Maximum capacity in litres/day*
- 1440
- Maximum capacity in gallons/day*
- 380
- Generator
- Yes
- Consumption in kW
- 0.75
- Consumption in Ampere (12 VDC)
- 0.00
- Consumption in Ampere (24 VDC)
- 0.00
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 70 cm
- Height
- 30 cm
- Depth
- 23 cm
- Weight
- 37 kg
