Brackish Water Watermakers

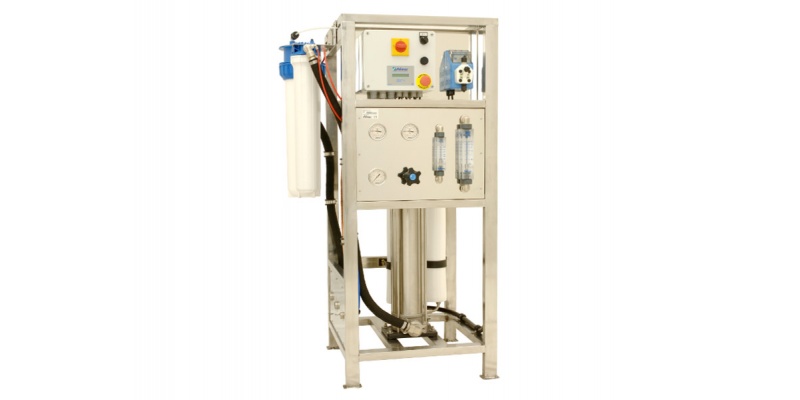

SMH 6400
SMH 6400
SMH 6400 is a medium capacity desalinator, realized in a solid stainless steel structure. It is provided with an electronic control devices with micro controller, it will be able to treat brackish water up to 5000 ppm of TDS, ensuring fresh water purified againts chimical, bacteriologiacal an physical pollution.
SMH 6400 has a fresh water capacity of 24 m3/day, it is suitable to be used in land applications as residences, hotels and restaurants etc.
The reverse osmosis unit is designed and constructed to treat brackish water, well water and it is assembled in a stainless steel skid; it is equipped with protections and control systems, in compliance with the European standard.
Application
Application
400 VAC
24 m3/day
Brackish water Watermakers
TECHNICAL SPECIFICATION
TECHNICAL SPECIFICATION
| Flow rate of the produced fresh water | 24 m3/day |
|---|---|
| Quality rate of the produced fresh water | 500 ppm of TDS |
| Working pressure | 10/16 Bar |
| Type of the high pressure pump | Multistage vertical stainless steel 316L |
| Structure | Stainless steel |
Electric requirements: 400 Vac ± 10% 50Hz ± 5%
(Other voltages and frequencies are available on demand)
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 5000 ppm of TDS
Feed water temperature: 25 °C
Test conditions
Feed water salinity: 5000 ppm of TDS
Feed water temperature: 25 °C
* The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Raw water
- brackish water
- Maximum salinity of raw feed water
- 5000 ppm di TDS
- Design temperature of raw feed water
- 25° C
- Operating pressure
- 10/16 Bar
- Recovery
- 40%
- Consumption in kW
- 0.00
