Modular Watermakers
VICTORY ECF
model
Capacity:
Capacity:

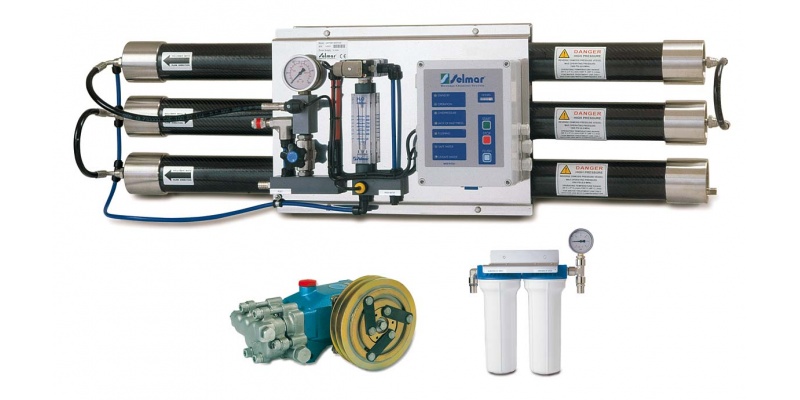

The VICTORY ECF desalination units, excellent for boats without generators, haven’t any electric motor.
The high pressure pump/power clutch assembly is connected to the boat’s engine throught a belt and pulley system. They are also available with a special by-pass stainless steel automatic valve operating pressure compensation, to assure always the correct working pressure. Manufactured using a stainless steel structure, it has a modular configuration and it is very functional.
Application
Application
12/24 VDC
40 litres
230 VAC
70 litres
230 VAC
110 litres
230 VAC
170 litres
230 VAC
220 litres
230 VAC
300 litres
Modular Watermakers
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| VICTORY ECF/30 | 40 | 960 | 254 | 5A-12V (2,5A-24V) | 70x35x23 cm | 30 kg |
| VICTORY ECF/60 | 70 | 1680 | 444 | 5A-12V (2,5A-24V) | 70x35x23 cm | 35 kg |
| VICTORY ECF/90 | 110 | 2640 | 697 | 5A-12V (2,5A-24V) | 70x35x23 cm | 40 Kg |
| VICTORY ECF/150 | 170 | 4080 | 1078 | 5A-12V (2,5A-24V) | 118x35x23 cm | 34 kg |
| VICTORY ECF/220 | 220 | 5280 | 1395 | 5A-12V (2,5A-24V) | 118x35x23 cm | 46 kg |
| VICTORY ECF/280 | 300 | 7200 | 1902 | 5A-12V (2,5A-24V) | 118x35x23 cm | 53 kg |
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Operating pressure regulator valve
- 316 L stainless steel by-pass automatic relief valve
- Thermal circuit breaker
Optional fittings
- Remote control
- Automatic low pressure shutdown
- Activated carbon post-filter
- U.V. sterilizer
- Sand filter
- Oil water separator
- Booster pump
Electric requirements: 12 Vdc (24 Vdc on demand)
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
**Â The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 40
- Maximum capacity in litres/day*
- 960
- Maximum capacity in gallons/day*
- 254
- Electric requirements
- boat engine
- Generator
- No
- Consumption in kW
- 0.0
- Consumption in Ampere (12 VDC)
- 5.0
- Consumption in Ampere (24 VDC)
- 2.5
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 70 cm
- Height
- 30 cm
- Depth
- 23 cm
- Weight
- 30 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| VICTORY ECF/30 | 40 | 960 | 254 | 5A-12V (2,5A-24V) | 70x35x23 cm | 30 kg |
| VICTORY ECF/60 | 70 | 1680 | 444 | 5A-12V (2,5A-24V) | 70x35x23 cm | 35 kg |
| VICTORY ECF/90 | 110 | 2640 | 697 | 5A-12V (2,5A-24V) | 70x35x23 cm | 40 Kg |
| VICTORY ECF/150 | 170 | 4080 | 1078 | 5A-12V (2,5A-24V) | 118x35x23 cm | 34 kg |
| VICTORY ECF/220 | 220 | 5280 | 1395 | 5A-12V (2,5A-24V) | 118x35x23 cm | 46 kg |
| VICTORY ECF/280 | 300 | 7200 | 1902 | 5A-12V (2,5A-24V) | 118x35x23 cm | 53 kg |
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Operating pressure regulator valve
- 316 L stainless steel by-pass automatic relief valve
- Thermal circuit breaker
Optional fittings
- Remote control
- Automatic low pressure shutdown
- Activated carbon post-filter
- U.V. sterilizer
- Sand filter
- Oil water separator
- Booster pump
Electric requirements: 12 Vdc (24 Vdc on demand)
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
**Â The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 70
- Maximum capacity in litres/day*
- 1680
- Maximum capacity in gallons/day*
- 444
- Electric requirements
- boat engine
- Generator
- No
- Consumption in kW
- 0.0
- Consumption in Ampere (12 VDC)
- 5.0
- Consumption in Ampere (24 VDC)
- 2.5
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 70 cm
- Height
- 30 cm
- Depth
- 23 cm
- Weight
- 35 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| VICTORY ECF/30 | 40 | 960 | 254 | 5A-12V (2,5A-24V) | 70x35x23 cm | 30 kg |
| VICTORY ECF/60 | 70 | 1680 | 444 | 5A-12V (2,5A-24V) | 70x35x23 cm | 35 kg |
| VICTORY ECF/90 | 110 | 2640 | 697 | 5A-12V (2,5A-24V) | 70x35x23 cm | 40 Kg |
| VICTORY ECF/150 | 170 | 4080 | 1078 | 5A-12V (2,5A-24V) | 118x35x23 cm | 34 kg |
| VICTORY ECF/220 | 220 | 5280 | 1395 | 5A-12V (2,5A-24V) | 118x35x23 cm | 46 kg |
| VICTORY ECF/280 | 300 | 7200 | 1902 | 5A-12V (2,5A-24V) | 118x35x23 cm | 53 kg |
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Operating pressure regulator valve
- 316 L stainless steel by-pass automatic relief valve
- Thermal circuit breaker
Optional fittings
- Remote control
- Automatic low pressure shutdown
- Activated carbon post-filter
- U.V. sterilizer
- Sand filter
- Oil water separator
- Booster pump
Electric requirements: 12 Vdc (24 Vdc on demand)
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
**Â The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 110
- Maximum capacity in litres/day*
- 2640
- Maximum capacity in gallons/day*
- 697
- Electric requirements
- boat engine
- Generator
- No
- Consumption in kW
- 0.0
- Consumption in Ampere (12 VDC)
- 5.0
- Consumption in Ampere (24 VDC)
- 2.5
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 70 cm
- Height
- 30 cm
- Depth
- 23 cm
- Weight
- 40 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| VICTORY ECF/30 | 40 | 960 | 254 | 5A-12V (2,5A-24V) | 70x35x23 cm | 30 kg |
| VICTORY ECF/60 | 70 | 1680 | 444 | 5A-12V (2,5A-24V) | 70x35x23 cm | 35 kg |
| VICTORY ECF/90 | 110 | 2640 | 697 | 5A-12V (2,5A-24V) | 70x35x23 cm | 40 Kg |
| VICTORY ECF/150 | 170 | 4080 | 1078 | 5A-12V (2,5A-24V) | 118x35x23 cm | 34 kg |
| VICTORY ECF/220 | 220 | 5280 | 1395 | 5A-12V (2,5A-24V) | 118x35x23 cm | 46 kg |
| VICTORY ECF/280 | 300 | 7200 | 1902 | 5A-12V (2,5A-24V) | 118x35x23 cm | 53 kg |
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Operating pressure regulator valve
- 316 L stainless steel by-pass automatic relief valve
- Thermal circuit breaker
Optional fittings
- Remote control
- Automatic low pressure shutdown
- Activated carbon post-filter
- U.V. sterilizer
- Sand filter
- Oil water separator
- Booster pump
Electric requirements: 12 Vdc (24 Vdc on demand)
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
**Â The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 170
- Maximum capacity in litres/day*
- 1680
- Maximum capacity in gallons/day*
- 1078
- Electric requirements
- boat engine
- Generator
- No
- Consumption in kW
- 0.0
- Consumption in Ampere (12 VDC)
- 5.0
- Consumption in Ampere (24 VDC)
- 2.5
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 118 cm
- Height
- 35 cm
- Depth
- 23 cm
- Weight
- 34 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| VICTORY ECF/30 | 40 | 960 | 254 | 5A-12V (2,5A-24V) | 70x35x23 cm | 30 kg |
| VICTORY ECF/60 | 70 | 1680 | 444 | 5A-12V (2,5A-24V) | 70x35x23 cm | 35 kg |
| VICTORY ECF/90 | 110 | 2640 | 697 | 5A-12V (2,5A-24V) | 70x35x23 cm | 40 Kg |
| VICTORY ECF/150 | 170 | 4080 | 1078 | 5A-12V (2,5A-24V) | 118x35x23 cm | 34 kg |
| VICTORY ECF/220 | 220 | 5280 | 1395 | 5A-12V (2,5A-24V) | 118x35x23 cm | 46 kg |
| VICTORY ECF/280 | 300 | 7200 | 1902 | 5A-12V (2,5A-24V) | 118x35x23 cm | 53 kg |
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Operating pressure regulator valve
- 316 L stainless steel by-pass automatic relief valve
- Thermal circuit breaker
Optional fittings
- Remote control
- Automatic low pressure shutdown
- Activated carbon post-filter
- U.V. sterilizer
- Sand filter
- Oil water separator
- Booster pump
Electric requirements: 12 Vdc (24 Vdc on demand)
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
**Â The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 220
- Maximum capacity in litres/day*
- 5280
- Maximum capacity in gallons/day*
- 1395
- Electric requirements
- boat engine
- Generator
- No
- Consumption in kW
- 0.0
- Consumption in Ampere (12 VDC)
- 5.0
- Consumption in Ampere (24 VDC)
- 2.5
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 118 cm
- Height
- 35 cm
- Depth
- 23 cm
- Weight
- 46 kg
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/day | Consumption | Dimensions(LxHxD) | Weight |
|---|---|---|---|---|---|---|
| VICTORY ECF/30 | 40 | 960 | 254 | 5A-12V (2,5A-24V) | 70x35x23 cm | 30 kg |
| VICTORY ECF/60 | 70 | 1680 | 444 | 5A-12V (2,5A-24V) | 70x35x23 cm | 35 kg |
| VICTORY ECF/90 | 110 | 2640 | 697 | 5A-12V (2,5A-24V) | 70x35x23 cm | 40 Kg |
| VICTORY ECF/150 | 170 | 4080 | 1078 | 5A-12V (2,5A-24V) | 118x35x23 cm | 34 kg |
| VICTORY ECF/220 | 220 | 5280 | 1395 | 5A-12V (2,5A-24V) | 118x35x23 cm | 46 kg |
| VICTORY ECF/280 | 300 | 7200 | 1902 | 5A-12V (2,5A-24V) | 118x35x23 cm | 53 kg |
Standard equipment
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate
- Hour meter
- High and low pressure hydraulic circuit gauges
- Operating pressure regulator valve
- 316 L stainless steel by-pass automatic relief valve
- Thermal circuit breaker
Optional fittings
- Remote control
- Automatic low pressure shutdown
- Activated carbon post-filter
- U.V. sterilizer
- Sand filter
- Oil water separator
- Booster pump
Electric requirements: 12 Vdc (24 Vdc on demand)
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
**Â The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- modular
- Maximum capacity in litres/hour*
- 300
- Maximum capacity in litres/day*
- 7200
- Maximum capacity in gallons/day*
- 1902
- Generator
- No
- Consumption in kW
- 0.0
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Product dimensions
- Width
- 118 cm
- Height
- 35 cm
- Depth
- 23 cm
- Weight
- 53 kg
Selmar Watermakers
Discover all Selmar products
DIRECT CURRENT WATERMAKERS
Previous
Next
MODULAR WATERMKES
Previous
Next
COMPACT WATERMAKERS
Previous
Next
SEWAGE TREATMENT SYSTEMS
Mission and Quality
Selmar Technologies is fully geared to quality and customer satisfaction: innovative solutions, custom design, production that meets the highest international standards, rapid and qualified assistance.
Solutions and Services
Selmar Technologies offers a full range of products and services for the marine industry and for civil and industrial water treatment: reverse osmosis desalinators for sea water or brackish water, sewage treatment systems for black and grey water, softeners and sterilizers.
Technology
The reverse osmosis process is the most efficient, steadiest and modern way to treat seawater and brackish water: it allows to obtain fresh and drinkable water with low power consumption. Selmar Technologies uses this technology since 30 years.
Social
Collaboriamo con organizzazioni e associazioni per promuovere l'inclusione sociale, l'istruzione e l'accesso alle risorse vitali, tra cui l'acqua.
Support
La nostra rete di vendita e centri di assistenza globale garantisce un supporto completo e tempestivo ovunque.
Mission and Quality
Selmar Technologies is fully geared to quality and customer satisfaction: innovative solutions, custom design, production that meets the highest international standards, rapid and qualified assistance.
Solutions and Services
Selmar Technologies offers a full range of products and services for the marine industry and for civil and industrial water treatment: reverse osmosis desalinators for sea water or brackish water, sewage treatment systems for black and grey water, softeners and sterilizers.
Technology
The reverse osmosis process is the most efficient, steadiest and modern way to treat seawater and brackish water: it allows to obtain fresh and drinkable water with low power consumption. Selmar Technologies uses this technology since 30 years.
Social
Collaboriamo con organizzazioni e associazioni per promuovere l'inclusione sociale, l'istruzione e l'accesso alle risorse vitali, tra cui l'acqua.
Support
La nostra rete di vendita e centri di assistenza globale garantisce un supporto completo e tempestivo ovunque.
SELMAR TECHNOLOGIES S.r.l.
“Company with quality system certified ISO 9001”
P.iva: 01361430810 – Iscr. Reg. Impr. TP n. 80498 – Cap. soc. euro 500.000,00 i.v.
Sales Dept
Via XX Settembre, 30 – 20025 Legnano (Milan) – Italy
Tel. +39 02 320 622 654 / +39 0331 542782
Fax +39 02 700 530 851 / +39 0331 478646
Headquarter
Z.I. C.da San Silvestro – 91025 Marsala – Italy
Tel +39 0923 721408 / Fax +39 0923 999515
