Compact Watermakers
SUPERIOR CLASS
model
Capacity:
Capacity:

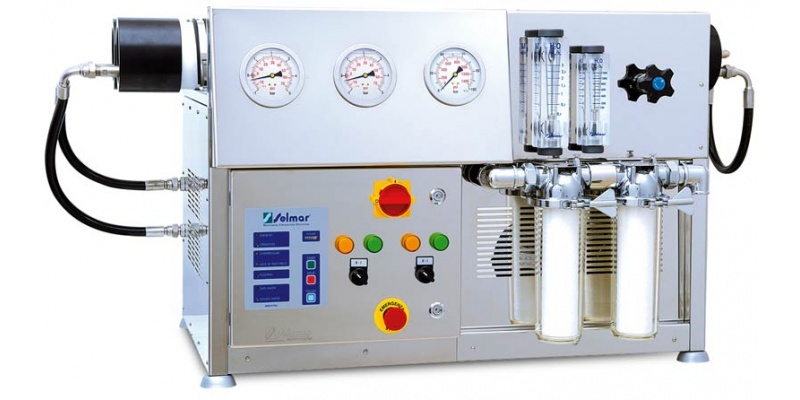

The SUPERIOR CLASS line is a plant with a new design and compact size and very small size.
Assembled on a strong structure in polished stailess steel, it is equipped with electronic control unit with microcontroller and efficient control instrumentation for easy and simple operation. It is available with capacities from 370 to 950 litres/hour, and it is ideal for medium and luxury big boats but can also be used for land applications.
Application
Application
400 VAC
370 litres
400 VAC
500 litres
400 VAC
700 litres
400 VAC
950 litres
Compact Watermakers
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/hour | Gallons/day | Consumption |
|---|---|---|---|---|---|
| SUPERIOR CLASS 370 | 370 | 8880 | 98 | 2346 | 6 kW |
| SUPERIOR CLASS 500 | 500 | 12000 | 132 | 3170 | 6 kW |
| SUPERIOR CLASS 700 | 700 | 16800 | 185 | 4438 | 6 kW |
| SUPERIOR CLASS 950 | 950 | 22800 | 251 | 6023 | 6 kW |
Electric requirements: 400 Vac ± 10% 50Hz ± 5% (Other voltages and frequencies are available on demand).
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 35000 ppm di TDS
Feed water temperature: 25 °C
Standard equipment
- Command and control system with microcontroller
- Automatic low pressure shutdown
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate and on concentrate
- Hour meter
- High and low pressure hygraulic circuit gauges
- Working pressure regulator valve
- Thermal protection of electrical motors
- Booster pump
Optional fittings
- Remote control
- Automatic flushing system
- U.V. sterilizer
- Activated carbon post-filter
- Sand filter
- Oil water separator
- Chemical pre-treatment system
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/hour*
- 370
- Maximum capacity in litres/day*
- 8880
- Maximum capacity in gallons/day*
- 2346
- Generator
- Yes
- Consumption in kW
- 6.0
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/hour | Gallons/day | Consumption |
|---|---|---|---|---|---|
| SUPERIOR CLASS 370 | 370 | 8880 | 98 | 2346 | 6 kW |
| SUPERIOR CLASS 500 | 500 | 12000 | 132 | 3170 | 6 kW |
| SUPERIOR CLASS 700 | 700 | 16800 | 185 | 4438 | 6 kW |
| SUPERIOR CLASS 950 | 950 | 22800 | 251 | 6023 | 6 kW |
Electric requirements: 400 Vac ± 10% 50Hz ± 5% (Other voltages and frequencies are available on demand).
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 35000 ppm di TDS
Feed water temperature: 25 °C
Standard equipment
- Command and control system with microcontroller
- Automatic low pressure shutdown
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate and on concentrate
- Hour meter
- High and low pressure hygraulic circuit gauges
- Working pressure regulator valve
- Thermal protection of electrical motors
- Booster pump
Optional fittings
- Remote control
- Automatic flushing system
- U.V. sterilizer
- Activated carbon post-filter
- Sand filter
- Oil water separator
- Chemical pre-treatment system
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/hour*
- 500
- Maximum capacity in litres/day*
- 12000
- Maximum capacity in gallons/day*
- 3170
- Generator
- Yes
- Consumption in kW
- 6.0
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/hour | Gallons/day | Consumption |
|---|---|---|---|---|---|
| SUPERIOR CLASS 370 | 370 | 8880 | 98 | 2346 | 6 kW |
| SUPERIOR CLASS 500 | 500 | 12000 | 132 | 3170 | 6 kW |
| SUPERIOR CLASS 700 | 700 | 16800 | 185 | 4438 | 6 kW |
| SUPERIOR CLASS 950 | 950 | 22800 | 251 | 6023 | 6 kW |
Electric requirements: 400 Vac ± 10% 50Hz ± 5% (Other voltages and frequencies are available on demand).
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 35000 ppm di TDS
Feed water temperature: 25 °C
Standard equipment
- Command and control system with microcontroller
- Automatic low pressure shutdown
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate and on concentrate
- Hour meter
- High and low pressure hygraulic circuit gauges
- Working pressure regulator valve
- Thermal protection of electrical motors
- Booster pump
Optional fittings
- Remote control
- Automatic flushing system
- U.V. sterilizer
- Activated carbon post-filter
- Sand filter
- Oil water separator
- Chemical pre-treatment system
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/hour*
- 700
- Maximum capacity in litres/day*
- 16800
- Maximum capacity in gallons/day*
- 4438
- Generator
- Yes
- Consumption in kW
- 6.0
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
Models and characteristics
Standard equipment
Optional fittings
Models and characteristics
| Model | Litres/hour | Litres/day | Gallons/hour | Gallons/day | Consumption |
|---|---|---|---|---|---|
| SUPERIOR CLASS 370 | 370 | 8880 | 98 | 2346 | 6 kW |
| SUPERIOR CLASS 500 | 500 | 12000 | 132 | 3170 | 6 kW |
| SUPERIOR CLASS 700 | 700 | 16800 | 185 | 4438 | 6 kW |
| SUPERIOR CLASS 950 | 950 | 22800 | 251 | 6023 | 6 kW |
Electric requirements: 400 Vac ± 10% 50Hz ± 5% (Other voltages and frequencies are available on demand).
The fresh water produced may vary ± 20%, due to variations of salinity and temperature of the fresh water.
Test conditions
Feed water salinity: 35000 ppm di TDS
Feed water temperature: 25 °C
Standard equipment
- Command and control system with microcontroller
- Automatic low pressure shutdown
- Automatic over pressure shutdown
- Salinity meter with automatic flow diversion valve
- Flow meter on permeate and on concentrate
- Hour meter
- High and low pressure hygraulic circuit gauges
- Working pressure regulator valve
- Thermal protection of electrical motors
- Booster pump
Optional fittings
- Remote control
- Automatic flushing system
- U.V. sterilizer
- Activated carbon post-filter
- Sand filter
- Oil water separator
- Chemical pre-treatment system
* The data related to the fresh water production, as indicated in the specification tables, is to be understood nominal and may vary by ± 20% due to the salinity and to the temperature alteration of the feeding water.
** The reproduced image may not exactly be equivalent to the real characteristics of the model.
Model specifications
- Configuration
- compact
- Maximum capacity in litres/hour*
- 950
- Maximum capacity in litres/day*
- 22800
- Maximum capacity in gallons/day*
- 6023
- Generator
- Yes
- Consumption in kW
- 6.0
- Consumption in Ampere (12 VDC)
- 0.0
- Consumption in Ampere (24 VDC)
- 0.0
- Feed water salinity
- 35000 ppm TDS
- Feed water temperature
- 25° C
